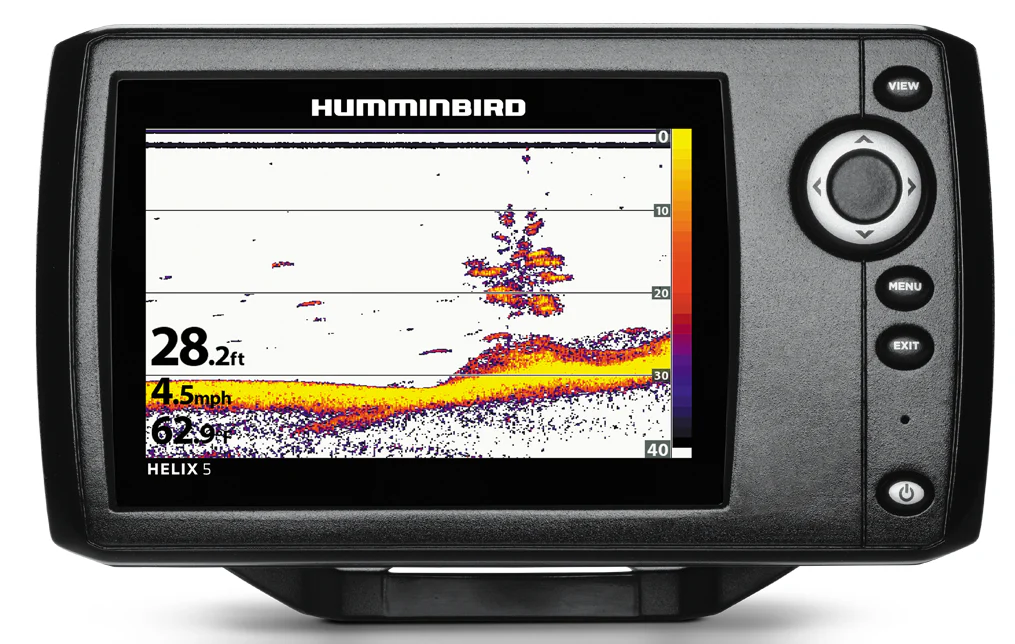

The HELIX 5 Sonar G2 with Humminbird's new user interface and operating system, features ?a brilliant 800H x 480V, 5" 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 Sonar G2 fishfinder system.

WARNING: This product can expose you to chemicals 1,3-Butadiene which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Display Size - Diagonal: 5"

• Display Pixel Matrix: 800H X 480V

• Display Type: Color TFT

• Display Colors Grayscale: 16-bit

• Sonar Standard: DualBeam PLUS

• Standard Sonar Coverage: 20° & 60° @ -10db

• Standard Sonar Frequency: 200/83 kHz

• Target Separation: 2.5"

• Power Output RMS: 500 Watts

• Power Output Peak to Peak: 4000 Watts

• Depth Capability: 1500 ft

• Temperature: Built-In Transducer

• Backlight: LED

• Unit Size - Gimbal Mount: 7.55"W x 4.64"H x 3.3"D

• Mount A Type: Gimbal Mount

• Unit Size - Indash Mount: 7.55"W x 4.28"D x 1.13"D

• Mount B Unit Size2: Optional In-Dash

• Mounting Options: Gimbal Mount or Optional In-Dash

• Transducer Standard: XNT 9 20 T

• Transducer Mounting: Transom

• Power Input: 10.8-20 VDC

• Power Draw: 650 mA

• SwitchFire Sonar

• Split Screen Zoom

• Split Screen Bottom Lock

• Large Digits View

• Wide/Narrow Cone Split Screen

• Custom View Selections

• Custom Digital Readout

• Temperature Alarm

• Freeze Frame

• Instant Image Update

• Selective Fish ID+

• Real Time Sonar

• X-Press Menu System

Optional Features:

Triplog

Upgradable Internal Software

PC Connect

Speed

Humminbird PC
